Anatomy of a Cement Plant
Anatomy of a Cement Plant
Quarry
Step 1 : Quarry
For its raw materials, cement manufacturing uses minerals containing the four essential elements for its creation: calcium, silicon, aluminum, and iron. Most plants rely on a nearby quarry for limestone. The most common combination of ingredients is limestone coupled with much smaller quantities of clay and sand. Other raw materials, such as mill scale, shale, bauxite and fly ash, are brought in from outside sources when necessary. Rock blasted from the quarry face is transported to the primary crusher, where chair sized rocks are broken into pieces the size of baseballs. Some plants will use a secondary crusher, depending on process needs.
HOVER OVER ME
Proportioning Blending & Raw Grinding
Step 2 : Proportioning Blending & Raw Grinding
The raw materials are analyzed in real-time using cross-belt analyzers and in the plant laboratory, blended in the proper proportion, and then ground even finer. Plants grind the raw materials with heavy, wheel-type rollers that crush the materials into powder against a rotating table. After grinding, the material is known as raw meal and is now ready for the preheater tower.
Preheater Tower

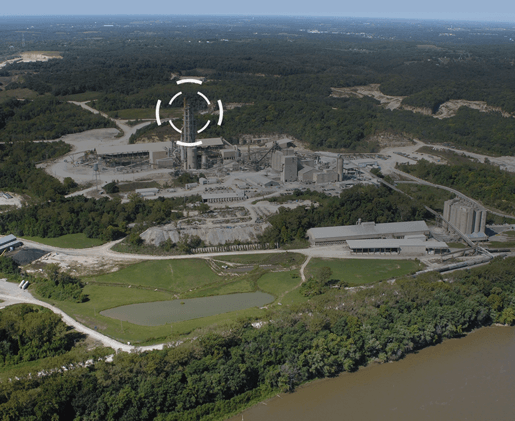

Step 3 : Preheater Tower
The preheater tower supports a series of vertical cyclone chambers through which the raw meal passes on its way to the kiln. To save energy, modern cement plants preheat the meal before it enters the kiln. Rising more than 350 feet, hot exit gases from the kiln and clinker cooler combined with fuels such as ground coal, petcoke, natural gas, and recycled waste streams, heat the raw materials as they swirl through the cyclones.
Distribution

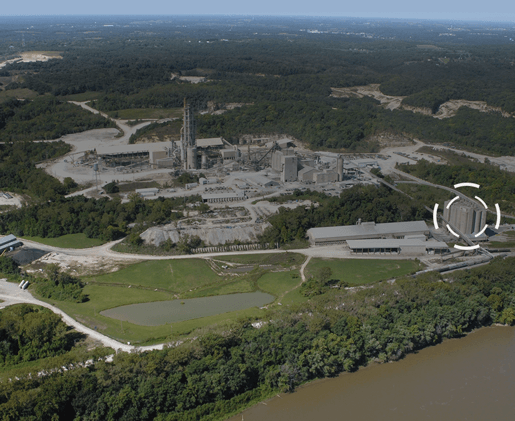

Step 7 : Distribution
From the grinding mills, the cement is conveyed to silos where it awaits shipment. Cement is shipped by trucks, rail, or barge.
Finish Grinding

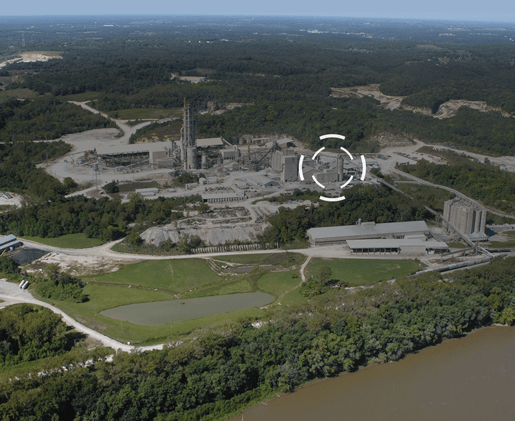

Step 6 : Finish Grinding
The clinker is ground in a ball mill—a horizontal steel tube filled with steel balls. As the tube rotates, the steel balls tumble and crush the clinker into a super-fine powder. It can now be considered Portland cement. The cement is so fine it will easily pass through a sieve that is fine enough to hold water. A small amount of gypsum is added during final grinding to control the set.
Clinker Cooler

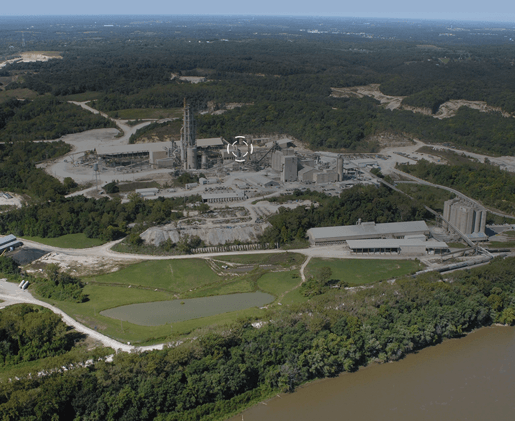

Step 5 : Clinker Cooler
The clinker tumbles onto a grate system cooled by forced air. Once cooled the clinker is ready to be ground into the gray powder known as Portland cement. To save energy, heat recovered is recirculated back to the kiln and preheater tower.
Kiln

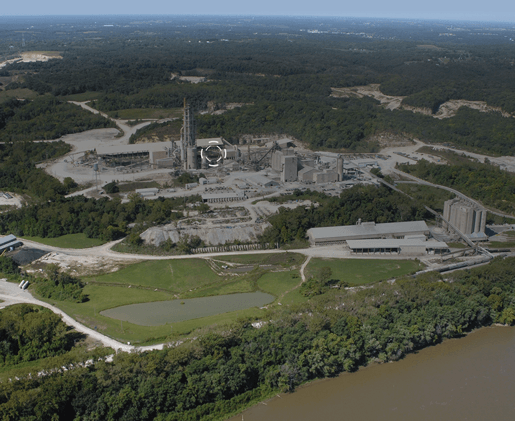

Step 4 : Kiln
Raw meal now enters the huge rotating furnace called a kiln. It’s the heart of the cement making process—a horizontally sloped steel cylinder, lined with firebrick, turning approximately four revolutions per minute. The kiln is the world’s largest piece of moving industrial equipment. From the preheater, the raw meal enters the kiln at the upper end. It slides and tumbles down the kiln through progressively hotter zones toward the flame. At the lower end of the kiln, fuels such as ground coal, petcoke and natural gas feed a flame that reaches 3400 degrees Fahrenheit—one third of the temperature of the sun’s surface. Here in the hottest part of the kiln, the raw meal reaches about 2700 degrees Fahrenheit and becomes partially molten. This intense heat triggers chemical and physical changes. Expressed at its simplest, the series of chemical reactions converts the calcium and silicon oxides into calcium silicates, cement’s primary constituent. At the lower end of the kiln, the raw meal emerges as a new substance: red hot particles called clinker.
Step 1 : Quarry
For its raw materials, cement manufacturing uses minerals containing the four essential elements for its creation: calcium, silicon, aluminum, and iron. Most plants rely on a nearby quarry for limestone. The most common combination of ingredients is limestone coupled with much smaller quantities of clay and sand. Other raw materials, such as mill scale, shale, bauxite and fly ash, are brought in from outside sources when necessary. Rock blasted from the quarry face is transported to the primary crusher, where chair sized rocks are broken into pieces the size of baseballs. Some plants will use a secondary crusher, depending on process needs.
Step 2: Proportioning Blending & Raw Grinding
The raw materials are analyzed in real-time using cross-belt analyzers and in the plant laboratory, blended in the proper proportion, and then ground even finer. Plants grind the raw materials with heavy, wheel-type rollers that crush the materials into powder against a rotating table. After grinding, the material is known as raw meal and is now ready for the preheater tower.
Step 3 : Preheater Tower
The preheater tower supports a series of vertical cyclone chambers through which the raw meal passes on its way to the kiln. To save energy, modern cement plants preheat the meal before it enters the kiln. Rising more than 350 feet, hot exit gases from the kiln and clinker cooler combined with fuels such as ground coal, petcoke, natural gas, and recycled waste streams, heat the raw materials as they swirl through the cyclones.
Step 7 :Distribution
From the grinding mills, the cement is conveyed to silos where it awaits shipment. Cement is shipped by trucks, rail, or barge.
Step 6 : Finish Grinding
The clinker is ground in a ball mill—a horizontal steel tube filled with steel balls. As the tube rotates, the steel balls tumble and crush the clinker into a super-fine powder. It can now be considered Portland cement. The cement is so fine it will easily pass through a sieve that is fine enough to hold water. A small amount of gypsum is added during final grinding to control the set.
Step 5 : Clinker Cooler
The clinker tumbles onto a grate system cooled by forced air. Once cooled the clinker is ready to be ground into the gray powder known as Portland cement. To save energy, heat recovered is recirculated back to the kiln and preheater tower.
Step 4 : Kiln
Raw meal now enters the huge rotating furnace called a kiln. It’s the heart of the cement making process—a horizontally sloped steel cylinder, lined with firebrick, turning approximately four revolutions per minute. The kiln is the world’s largest piece of moving industrial equipment. From the preheater, the raw meal enters the kiln at the upper end. It slides and tumbles down the kiln through progressively hotter zones toward the flame. At the lower end of the kiln, fuels such as ground coal, petcoke and natural gas feed a flame that reaches 3400 degrees Fahrenheit—one third of the temperature of the sun’s surface. Here in the hottest part of the kiln, the raw meal reaches about 2700 degrees Fahrenheit and becomes partially molten. This intense heat triggers chemical and physical changes. Expressed at its simplest, the series of chemical reactions converts the calcium and silicon oxides into calcium silicates, cement’s primary constituent. At the lower end of the kiln, the raw meal emerges as a new substance: red hot particles called clinker.
Cement

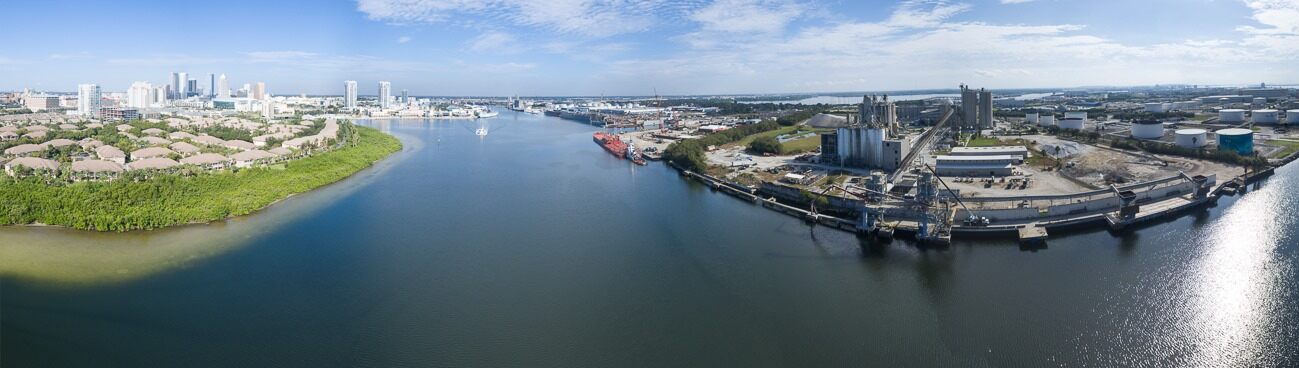

Summit Materials has split its 12 operating companies into 3 segments: East, West, and Cement. Our Cement segment is comprised of Continental Cement Company, with 2 cement plants and 8 distribution terminals along the Mississippi River. Above is a photo of one of our cement plants, with details showing how cement is made. Cement is the binder that, when combined with aggregates, creates ready-mixed concrete.
